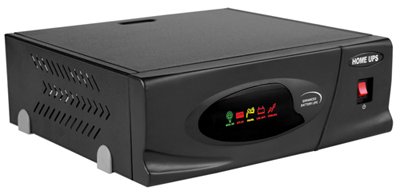

Soluna – Best Inverter for Home
This quiet, elegant looking Inverter, based on the world’s most advanced Sine Wave
technology, lights up your entire House or Office. It sets you free from the hassles
of erratic power supply, which is the order of the day and is the most cost effective
source of power during power cuts. From now on, like our 10000+ strong customers,
you too can say 'no' to all dark thoughts with the reliable power of our Home UPS with the reliable power of our Home UPS,
because among the Bangalore Home UPS manufacturers, we make the best inverter for home!.
-
Microcontroller /DSP based design, with most pure sine wave – best in the industry
– with or without load.
-
SMPS based charger with complete, multi stage, battery management. Charges battery
from as low as 120V onwards.
-
Fuzzy logic control : Protects battery, reduces frequency of topping up, enhances
battery life and at the same time provides ultra fast charging with current from
1A to 12A.
- Saves upto 40% electricity compared to square wave inverter.
-
Smart overload sensing, Restart try 5 times, Short circuit protection with auto
reset, Return voltage protection, In built temperature sensor.
-
Soft start for heavy load and cold start. Ensures swappable load connectivity. You
can connect your entire lighting load without separate wiring.
-
Fast, synchronous change over. Inverter for home is ideal for sophisticated electronic
equipment like PCs, DVD players, LCD monitors, LCD TVs etc.
Specifications:
ON MAINS
|
|
Input
|
Normal Voltage
|
220V Single Phase & N
|
Input Voltage Window
|
( -20% to + 15% )
|
Normal Frequency
|
50 Hz + 6%
|
Output.
|
|
Output Voltage
|
220V Single Phase & N
|
BATTERY
|
|
DC Bus bar voltage
|
12V – 120 VDC
|
Load Power factor
|
0.8 lag to unity
|
Nominal Voltage
|
220VAC Single phase.
|
Regulation
|
(+) 5%
|
Frequency
|
50Hz +0.1 Hz
|
Waveform
|
True sine wave
|
Total Harmonic Distortion
|
<2% Minimum for linear load,
<3% for non linear load
|
Overload Capacity
|
125% for 10 mins,
150% for 60 Secs
|
Inverter Type
|
PWM
|
Transient Response
|
Remain within + 5% &
recover to 98% within one cycle
|
Crest Factor
|
3:1
|
Duty
|
Continuous
|
Changeover Time
|
20-30ms
|
EFFICIENCY
|
|
Invertor Efficiency
( DC to AC )
|
>90%
|
PROTECTIONS
|
Input under / Over Voltage
Battery low
Battery Charging Current Limit
Output Under Voltage
Output Over Voltage
Output Overload
Output Short Circuit
|
|
